GPUI Kit's data table as Avalonia's TableView, or DataGrid with the AvaloniaUIKit.DataGrid package.

PartialAvaloniaUIKit.DataGrid
InteractiveData Table demo
<TableView Width="400" Height="240" HorizontalAlignment="Left"
           ItemsSource="{x:Static local:Person.Samples}">
  <TableView.Columns>
    <TableViewColumn Header="Name" Binding="{Binding Name}" Width="120" />
    <TableViewColumn Header="Email" Binding="{Binding Email}" Width="180" />
    <TableViewColumn Header="Amount" Binding="{Binding Amount}" Width="100" HorizontalContentAlignment="Right" />
  </TableView.Columns>
</TableView>

Usage

TableView has GPUI Kit's DataTable look by default: a bordered box with the theme radius, a header band with a rule under it, rows of a fixed height with a rule under each, the hover and selection fills, resize handles on the header edges and overlay scrollbars. Columns are TableViewColumns with a Header and a Binding; give them pixel Widths, as GPUI's columns have, and HorizontalContentAlignment="Right" for numbers. The plain table of GPUI Kit is the same control with Theme="{StaticResource GpuiTable}": see Table.

ClassEffect
stripeEvery other row on the even color, and empty striped rows below the last one.
borderlessNo border and no fill around the rows.
xsmall26px rows, 4×2 cell padding, 12px text.
small30px rows, 6×3 cell padding.
large40px rows, 12×8 cell padding, 16px text.

The default is 32px rows with 8×4 padding and 14px text.

For DataGrid (the Avalonia.Controls.DataGrid package), add GpuiDataGridTheme from the AvaloniaUIKit.DataGrid package to the application's styles after GpuiTheme. The grid takes the same look, with what DataGrid has of its own: sort indicators in the headers, column resizing and reordering. Set IsReadOnly="True" for a table that only displays (a click edits a cell otherwise) and CanUserResizeColumns="True" (off by default); right-align a column with CellStyleClasses="text-right" and a right-aligned header. The stripe, borderless and size classes are the same.

Examples

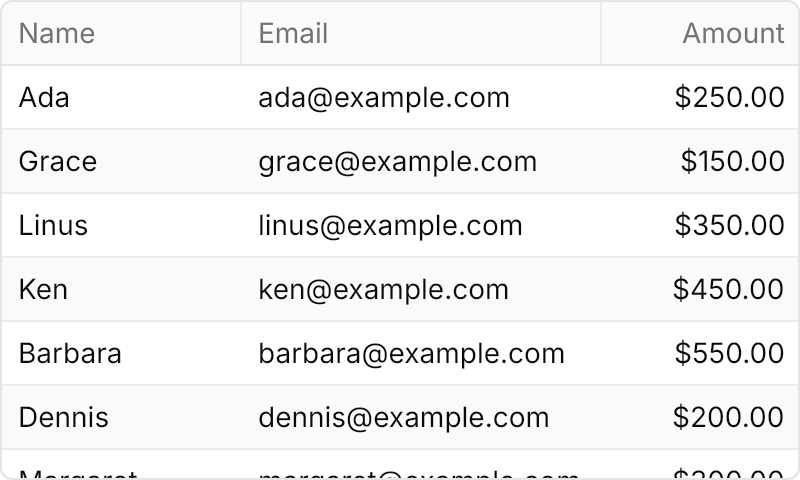

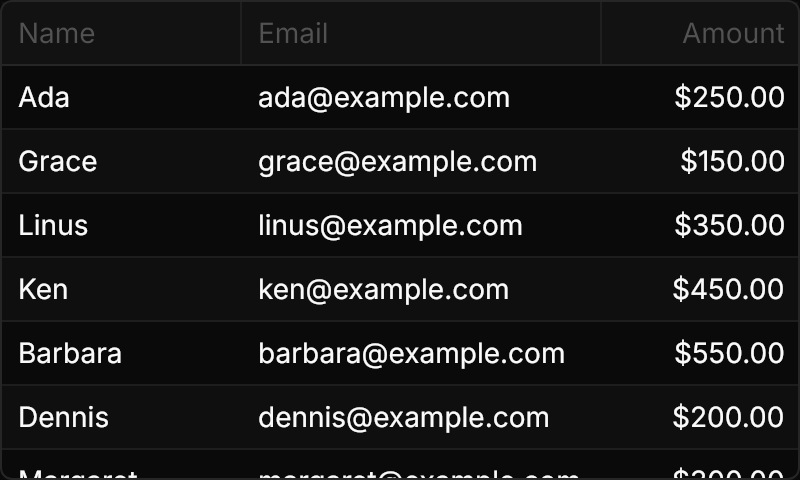

Classes="stripe" fills every other row and continues the stripes below the last row.

Striped
InteractiveData Table demo: Striped
<TableView Classes="stripe" Width="400" Height="240" HorizontalAlignment="Left"
           ItemsSource="{x:Static local:Person.Samples}">
  <TableView.Columns>
    <TableViewColumn Header="Name" Binding="{Binding Name}" Width="120" />
    <TableViewColumn Header="Email" Binding="{Binding Email}" Width="180" />
    <TableViewColumn Header="Amount" Binding="{Binding Amount}" Width="100" HorizontalContentAlignment="Right" />
  </TableView.Columns>
</TableView>

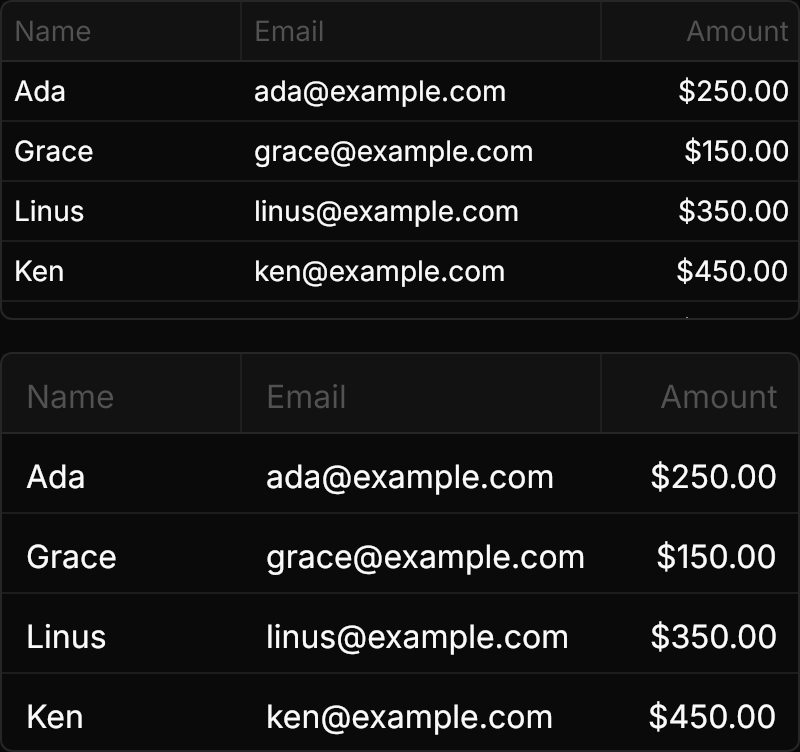

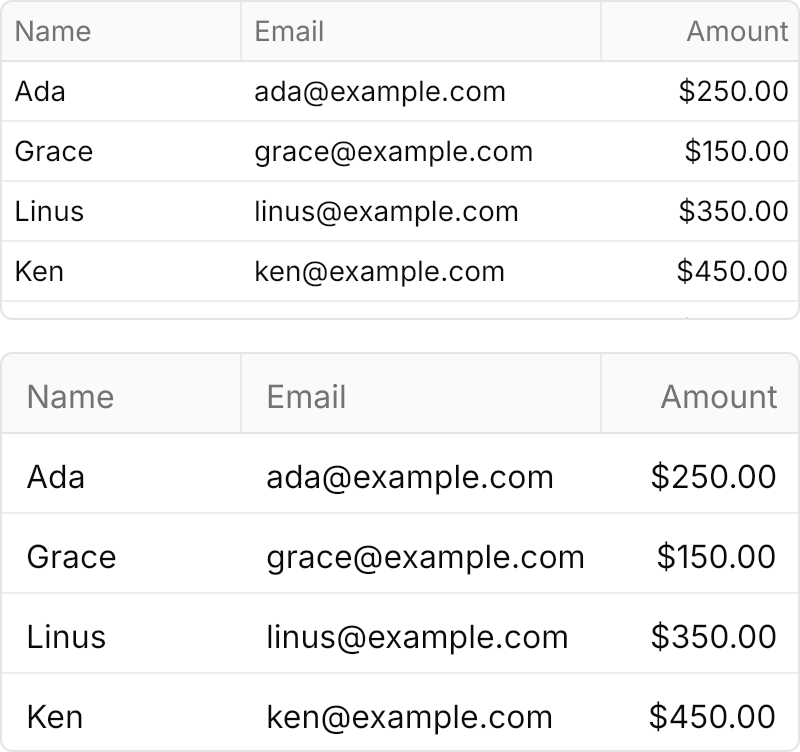

small and large change the row height, the cell padding and (for large) the text size.

Sizes
InteractiveData Table demo: Sizes
<StackPanel Spacing="16" HorizontalAlignment="Left">
  <TableView Classes="small" Width="400" Height="160" ItemsSource="{x:Static local:Person.Samples}">
    <TableView.Columns>
      <TableViewColumn Header="Name" Binding="{Binding Name}" Width="120" />
      <TableViewColumn Header="Email" Binding="{Binding Email}" Width="180" />
      <TableViewColumn Header="Amount" Binding="{Binding Amount}" Width="100" HorizontalContentAlignment="Right" />
    </TableView.Columns>
  </TableView>
  <TableView Classes="large" Width="400" Height="200" ItemsSource="{x:Static local:Person.Samples}">
    <TableView.Columns>
      <TableViewColumn Header="Name" Binding="{Binding Name}" Width="120" />
      <TableViewColumn Header="Email" Binding="{Binding Email}" Width="180" />
      <TableViewColumn Header="Amount" Binding="{Binding Amount}" Width="100" HorizontalContentAlignment="Right" />
    </TableView.Columns>
  </TableView>
</StackPanel>

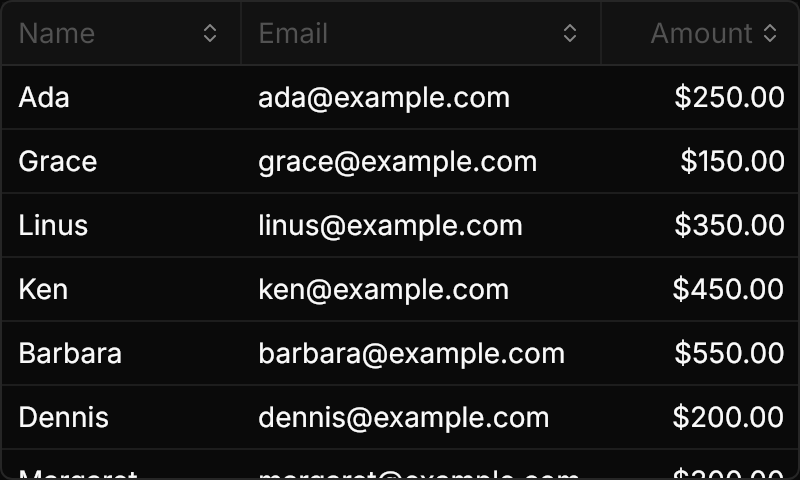

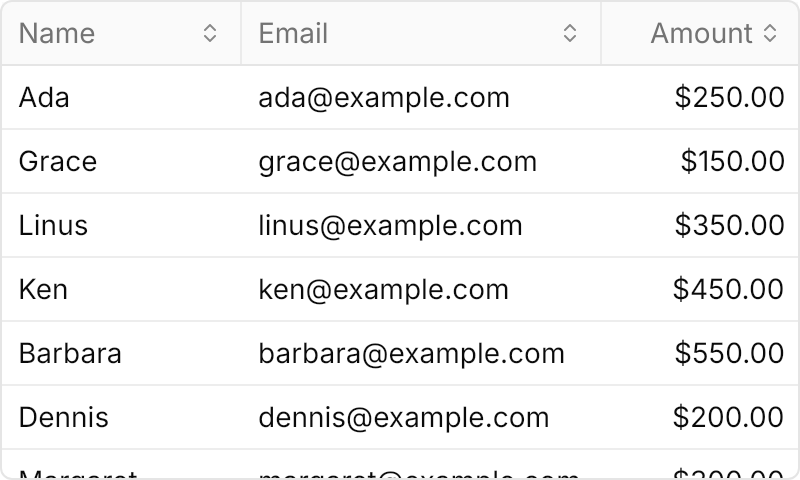

DataGrid with GpuiDataGridTheme: read-only, sortable from the headers, resizable columns, and an amount column right-aligned with CellStyleClasses="text-right".

DataGrid
InteractiveData Table demo: DataGrid
<DataGrid Width="400" Height="240" HorizontalAlignment="Left"
          ItemsSource="{x:Static local:Person.Samples}"
          IsReadOnly="True" CanUserSortColumns="True" CanUserResizeColumns="True" CanUserReorderColumns="False">
  <DataGrid.Columns>
    <DataGridTextColumn Header="Name" Binding="{Binding Name}" Width="120" />
    <DataGridTextColumn Header="Email" Binding="{Binding Email}" Width="180" />
    <DataGridTextColumn Header="Amount" Binding="{Binding Amount}" Width="100" CellStyleClasses="text-right">
      <DataGridTextColumn.Header>
        <TextBlock Text="Amount" HorizontalAlignment="Right" />
      </DataGridTextColumn.Header>
    </DataGridTextColumn>
  </DataGrid.Columns>
</DataGrid>

Not covered

  • Sorting, moving and pinning columns in TableView (DataGrid has its own).
  • Cell range selection.
  • Infinite loading.
  • The frame around a right-clicked row (Avalonia selects the row on the right button).
  • NativeAOT with DataGrid, which is not trimmable itself.
