Scrollable

PreviousNext

GPUI Kit's overlay scrollbars, as Avalonia's ScrollViewer.

Full

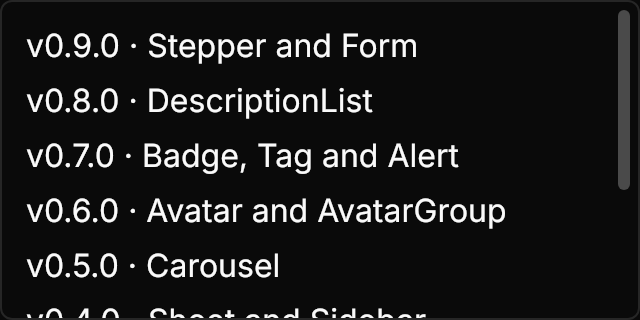

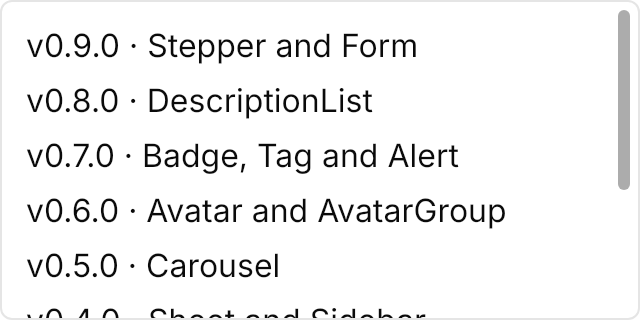

InteractiveScrollable demo
<!-- AllowAutoHide False keeps the scrollbar shown (GPUI's ScrollbarMode::Always). -->
<Border BorderBrush="{DynamicResource Gpui.Border}" BorderThickness="1" CornerRadius="5.5" Width="320" Height="160" HorizontalAlignment="Left">
  <ScrollViewer AllowAutoHide="False">
    <StackPanel Spacing="8" Margin="12">
      <TextBlock Text="v0.9.0 · Stepper and Form" />
      <TextBlock Text="v0.8.0 · DescriptionList" />
      <TextBlock Text="v0.7.0 · Badge, Tag and Alert" />
      <TextBlock Text="v0.6.0 · Avatar and AvatarGroup" />
      <TextBlock Text="v0.5.0 · Carousel" />
      <TextBlock Text="v0.4.0 · Sheet and Sidebar" />
      <TextBlock Text="v0.3.0 · Table" />
      <TextBlock Text="v0.2.0 · Calendar" />
      <TextBlock Text="v0.1.0 · Initial release" />
    </StackPanel>
  </ScrollViewer>
</Border>

Usage

The theme covers ScrollViewer, ScrollBar and Thumb in full, so every scrolling control gets GPUI Kit's scrollbars. They overlay the content in a 16px strip; the thumb is 6px wide with rounded ends and, under the pointer or while dragged, takes the hover color at once and widens to 8px over 300ms. Two properties on the ScrollViewer pick GPUI Kit's ScrollbarMode.

ModeAllowAutoHidegpui:Scrollbars.ShowOnHoverBehaviour
AlwaysFalse–The scrollbar always shows.
Hover (the default)TrueTrueShows when the pointer enters the strip or the content scrolls, fading in over 300ms; hides 2s after the pointer leaves or the scrolling stops, fading and sliding out to its edge over 500ms.
ScrollingTrueFalseShows only after a scroll, and stays while the pointer moves over it.

Pointed at straight on the thumb, a hidden bar slides in from its edge as it fades in.

Examples

The three modes side by side.

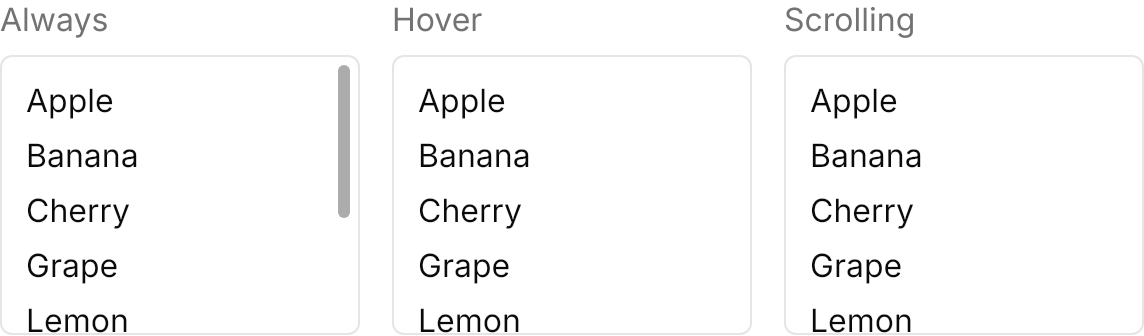

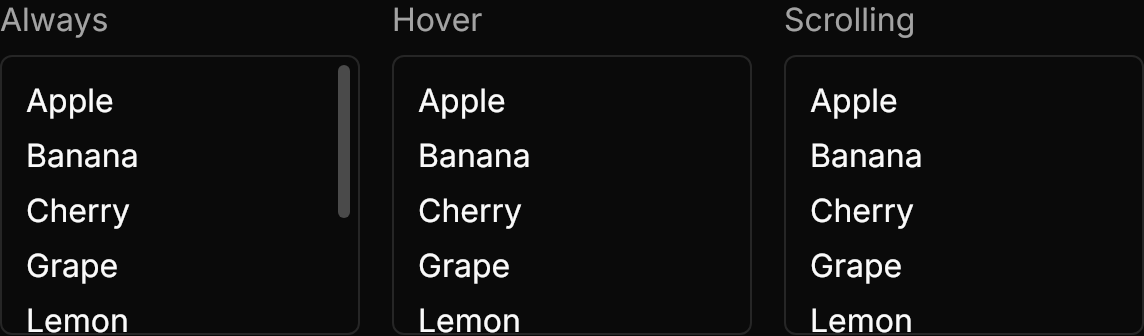

Modes
InteractiveScrollable demo: Modes
<StackPanel Orientation="Horizontal" Spacing="16" HorizontalAlignment="Left">
  <StackPanel Spacing="8">
    <TextBlock Text="Always" Foreground="{DynamicResource Gpui.MutedForeground}" />
    <Border BorderBrush="{DynamicResource Gpui.Border}" BorderThickness="1" CornerRadius="5.5" Width="180" Height="140">
      <ScrollViewer AllowAutoHide="False">
        <StackPanel Spacing="8" Margin="12">
          <TextBlock Text="Apple" />
          <TextBlock Text="Banana" />
          <TextBlock Text="Cherry" />
          <TextBlock Text="Grape" />
          <TextBlock Text="Lemon" />
          <TextBlock Text="Mango" />
          <TextBlock Text="Orange" />
          <TextBlock Text="Peach" />
        </StackPanel>
      </ScrollViewer>
    </Border>
  </StackPanel>
  <StackPanel Spacing="8">
    <TextBlock Text="Hover" Foreground="{DynamicResource Gpui.MutedForeground}" />
    <Border BorderBrush="{DynamicResource Gpui.Border}" BorderThickness="1" CornerRadius="5.5" Width="180" Height="140">
      <ScrollViewer AllowAutoHide="True">
        <StackPanel Spacing="8" Margin="12">
          <TextBlock Text="Apple" />
          <TextBlock Text="Banana" />
          <TextBlock Text="Cherry" />
          <TextBlock Text="Grape" />
          <TextBlock Text="Lemon" />
          <TextBlock Text="Mango" />
          <TextBlock Text="Orange" />
          <TextBlock Text="Peach" />
        </StackPanel>
      </ScrollViewer>
    </Border>
  </StackPanel>
  <StackPanel Spacing="8">
    <TextBlock Text="Scrolling" Foreground="{DynamicResource Gpui.MutedForeground}" />
    <Border BorderBrush="{DynamicResource Gpui.Border}" BorderThickness="1" CornerRadius="5.5" Width="180" Height="140">
      <ScrollViewer AllowAutoHide="True" gpui:Scrollbars.ShowOnHover="False">
        <StackPanel Spacing="8" Margin="12">
          <TextBlock Text="Apple" />
          <TextBlock Text="Banana" />
          <TextBlock Text="Cherry" />
          <TextBlock Text="Grape" />
          <TextBlock Text="Lemon" />
          <TextBlock Text="Mango" />
          <TextBlock Text="Orange" />
          <TextBlock Text="Peach" />
        </StackPanel>
      </ScrollViewer>
    </Border>
  </StackPanel>
</StackPanel>

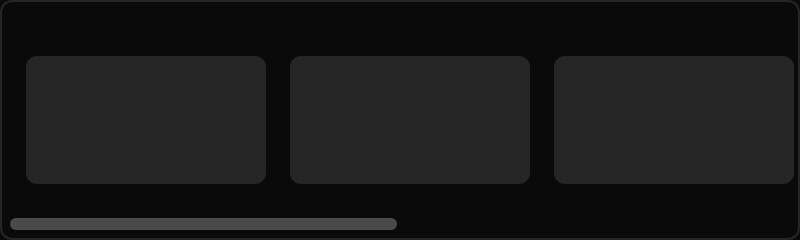

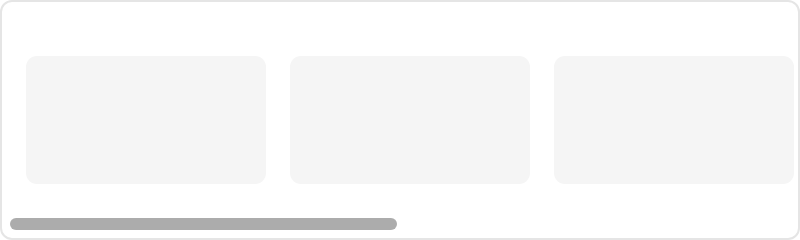

A horizontal scrollbar, with HorizontalScrollBarVisibility="Auto".

Horizontal
InteractiveScrollable demo: Horizontal
<Border BorderBrush="{DynamicResource Gpui.Border}" BorderThickness="1" CornerRadius="5.5" Width="400" Height="120" HorizontalAlignment="Left">
  <ScrollViewer HorizontalScrollBarVisibility="Auto" VerticalScrollBarVisibility="Disabled" AllowAutoHide="False">
    <StackPanel Orientation="Horizontal" Spacing="12" Margin="12">
      <Border Width="120" Height="64" CornerRadius="5.5" Background="{DynamicResource Gpui.Muted}" />
      <Border Width="120" Height="64" CornerRadius="5.5" Background="{DynamicResource Gpui.Muted}" />
      <Border Width="120" Height="64" CornerRadius="5.5" Background="{DynamicResource Gpui.Muted}" />
      <Border Width="120" Height="64" CornerRadius="5.5" Background="{DynamicResource Gpui.Muted}" />
      <Border Width="120" Height="64" CornerRadius="5.5" Background="{DynamicResource Gpui.Muted}" />
      <Border Width="120" Height="64" CornerRadius="5.5" Background="{DynamicResource Gpui.Muted}" />
    </StackPanel>
  </ScrollViewer>
</Border>

Not covered

  • Nothing: the control's look and motion are covered in full.
