Pagination

Interactive

Copy

<PipsPager NumberOfPages="5" SelectedPageIndex="2" />

View Code

Usage

PipsPager with numbered pages: set NumberOfPages and SelectedPageIndex. Previous and Next are ghost compact buttons with a chevron and a label (the resources Gpui.Pagination.Previous and Gpui.Pagination.Next), and the pages are compact buttons, the current one outline. The end buttons stay visible and disabled at the first and the last page, as in GPUI Kit. Sizes: xsmall, small, large (medium without one); compact keeps the chevrons alone, as square icon buttons. Set the classes in XAML, before the template applies: PipsPager sizes its page list from the first page it realizes. Past MaxVisiblePips the pages scroll.

Examples

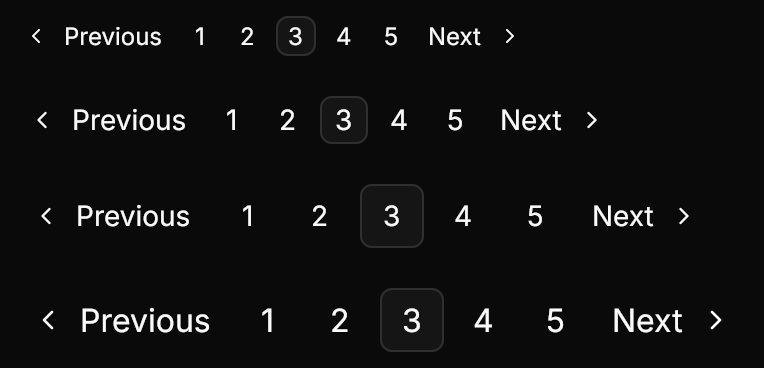

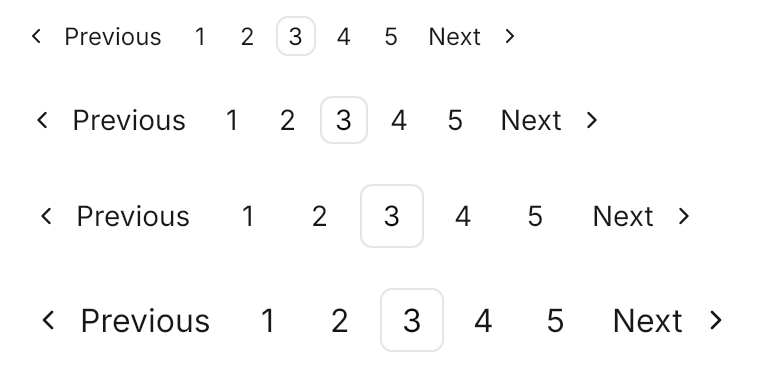

The four sizes.

Interactive

Copy

<StackPanel Spacing="4" HorizontalAlignment="Left">
  <PipsPager Classes="xsmall" NumberOfPages="5" SelectedPageIndex="2" />
  <PipsPager Classes="small" NumberOfPages="5" SelectedPageIndex="2" />
  <PipsPager NumberOfPages="5" SelectedPageIndex="2" />
  <PipsPager Classes="large" NumberOfPages="5" SelectedPageIndex="2" />
</StackPanel>

View Code

compact with small, at the default size, and disabled.

Interactive

Copy

<StackPanel Spacing="4" HorizontalAlignment="Left">
  <PipsPager Classes="compact small" NumberOfPages="5" SelectedPageIndex="2" />
  <PipsPager Classes="compact" NumberOfPages="5" SelectedPageIndex="2" />
  <PipsPager Classes="compact" NumberOfPages="5" SelectedPageIndex="2" IsEnabled="False" />
</StackPanel>

View Code

Not covered

• Collapsing long page lists with ellipses (GPUI Kit's ellipsis menu); PipsPager scrolls its pages instead.
