Tooltip

PreviousNext

GPUI Kit's tooltip bubble, fading and sliding in above its trigger, as ToolTip.

Full
InteractiveTooltip demo
<Panel MinWidth="280" MinHeight="130">
  <StackPanel Spacing="8" HorizontalAlignment="Left" VerticalAlignment="Bottom">
    <Button Content="Hover me" ToolTip.Tip="Tooltip text" HorizontalAlignment="Left" />
    <TextBlock Text="Hover the button to show the tooltip." Foreground="{DynamicResource Gpui.MutedForeground}" />
  </StackPanel>
</Panel>

Usage

The theme covers ToolTip in full: the popover background with a 1px border and GPUI Kit's shadow, 2px by 8px of padding and 14px text, fading in and sliding up 4px over 150ms. Set ToolTip.Tip on any control.

The theme sets GPUI Kit's timing and placement on every control: a tooltip shows after 500ms (ToolTip.ShowDelay), or at once within 300ms of another tooltip closing (ToolTip.BetweenShowDelay), and opens above its trigger, centered (ToolTip.Placement="Top"). Set ToolTip.Placement on a control to open its tooltip on another side.

Examples

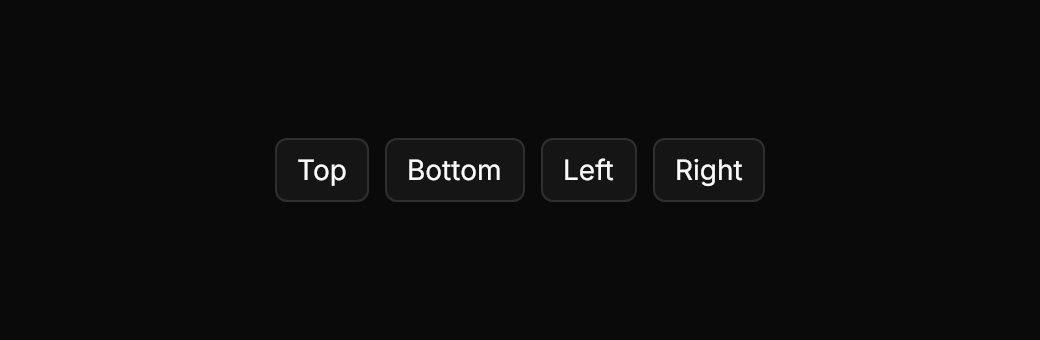

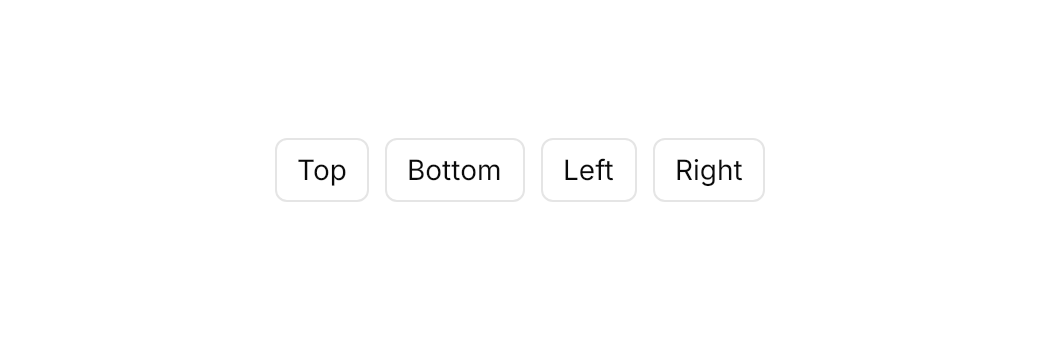

ToolTip.Placement on each button: the default top, then bottom, left and right.

Placements
InteractiveTooltip demo: Placements
<Panel MinWidth="520" MinHeight="170">
  <StackPanel Orientation="Horizontal" Spacing="8" HorizontalAlignment="Center" VerticalAlignment="Center">
    <Button Classes="outline" Content="Top" ToolTip.Tip="Above the trigger" />
    <Button Classes="outline" Content="Bottom" ToolTip.Tip="Below the trigger" ToolTip.Placement="Bottom" />
    <Button Classes="outline" Content="Left" ToolTip.Tip="On the left" ToolTip.Placement="Left" />
    <Button Classes="outline" Content="Right" ToolTip.Tip="On the right" ToolTip.Placement="Right" />
  </StackPanel>
</Panel>

A tooltip as the label of icon-only buttons.

Icon buttons
InteractiveTooltip demo: Icon buttons
<Panel MinWidth="240" MinHeight="96">
  <StackPanel Orientation="Horizontal" Spacing="4" HorizontalAlignment="Left" VerticalAlignment="Bottom">
    <Button Classes="icon-only ghost" ToolTip.Tip="Copy">
      <PathIcon Data="{StaticResource Gpui.Icon.Copy}" />
    </Button>
    <Button Classes="icon-only ghost" ToolTip.Tip="Search">
      <PathIcon Data="{StaticResource Gpui.Icon.Search}" />
    </Button>
    <Button Classes="icon-only ghost" ToolTip.Tip="Notifications">
      <PathIcon Data="{StaticResource Gpui.Icon.Bell}" />
    </Button>
    <Button Classes="icon-only ghost" ToolTip.Tip="Open in browser">
      <PathIcon Data="{StaticResource Gpui.Icon.ExternalLink}" />
    </Button>
  </StackPanel>
</Panel>

Not covered

  • Resolving a key binding from an Action.
  • The grace period before closing.
  • The slide between neighbouring tooltips.
